Staircases & Mezzanines

Central Steel Framing’s new product line of access systems enables quick and efficient solutions to a wide range of access requirements. Just get in touch with us or send us your dimensions for a price to see how we can make it easy for you.

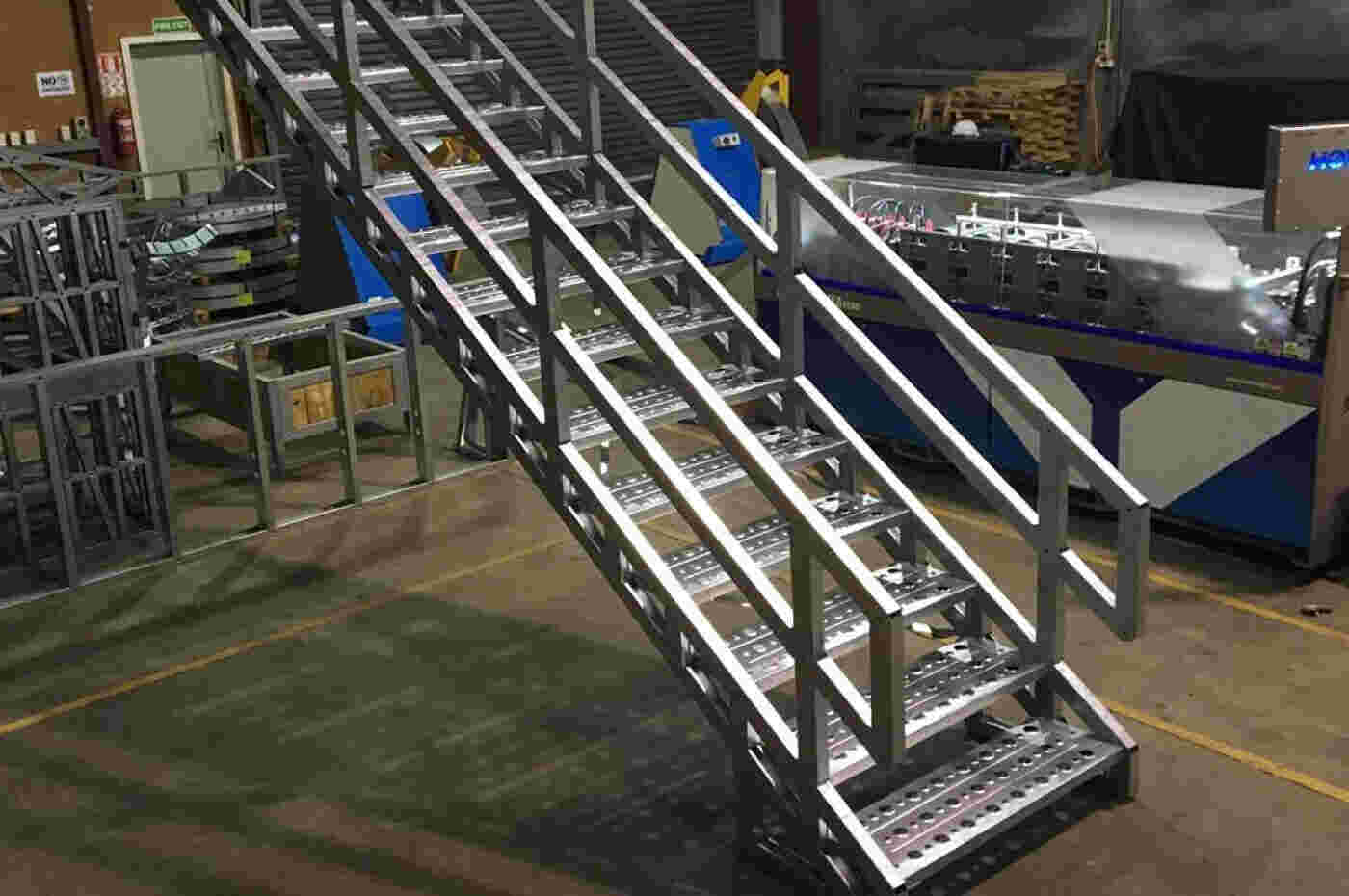

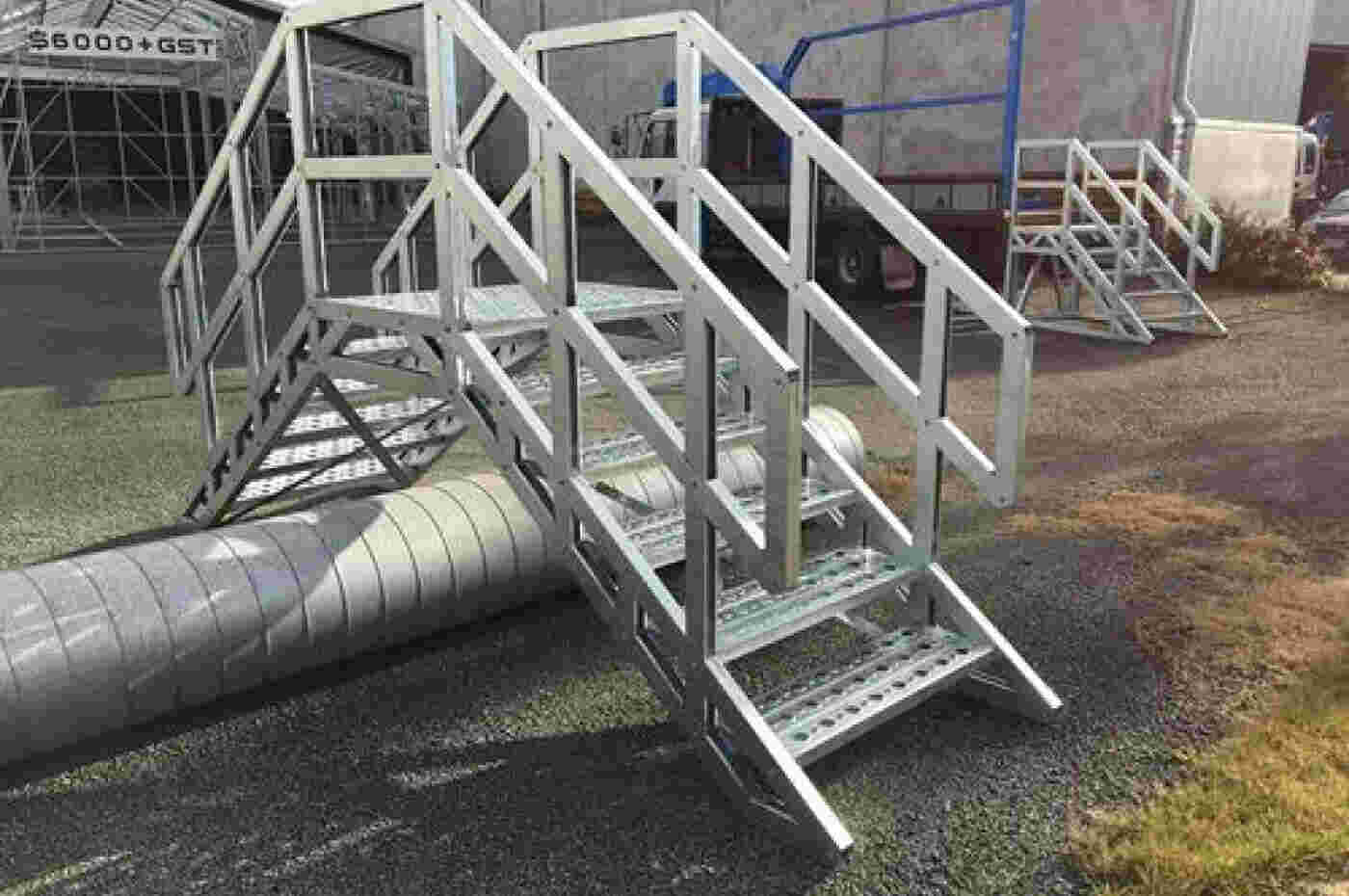

Central Steel Framing’s line of access systems provides a solution for a huge range of applications, including access platforms to plant & equipment, truck loading platforms, simple staircases to mezzanine floors, external roof access stair towers, and simple up and over platforms to get over a conveyor or other services. Whatever you need, we have it covered.

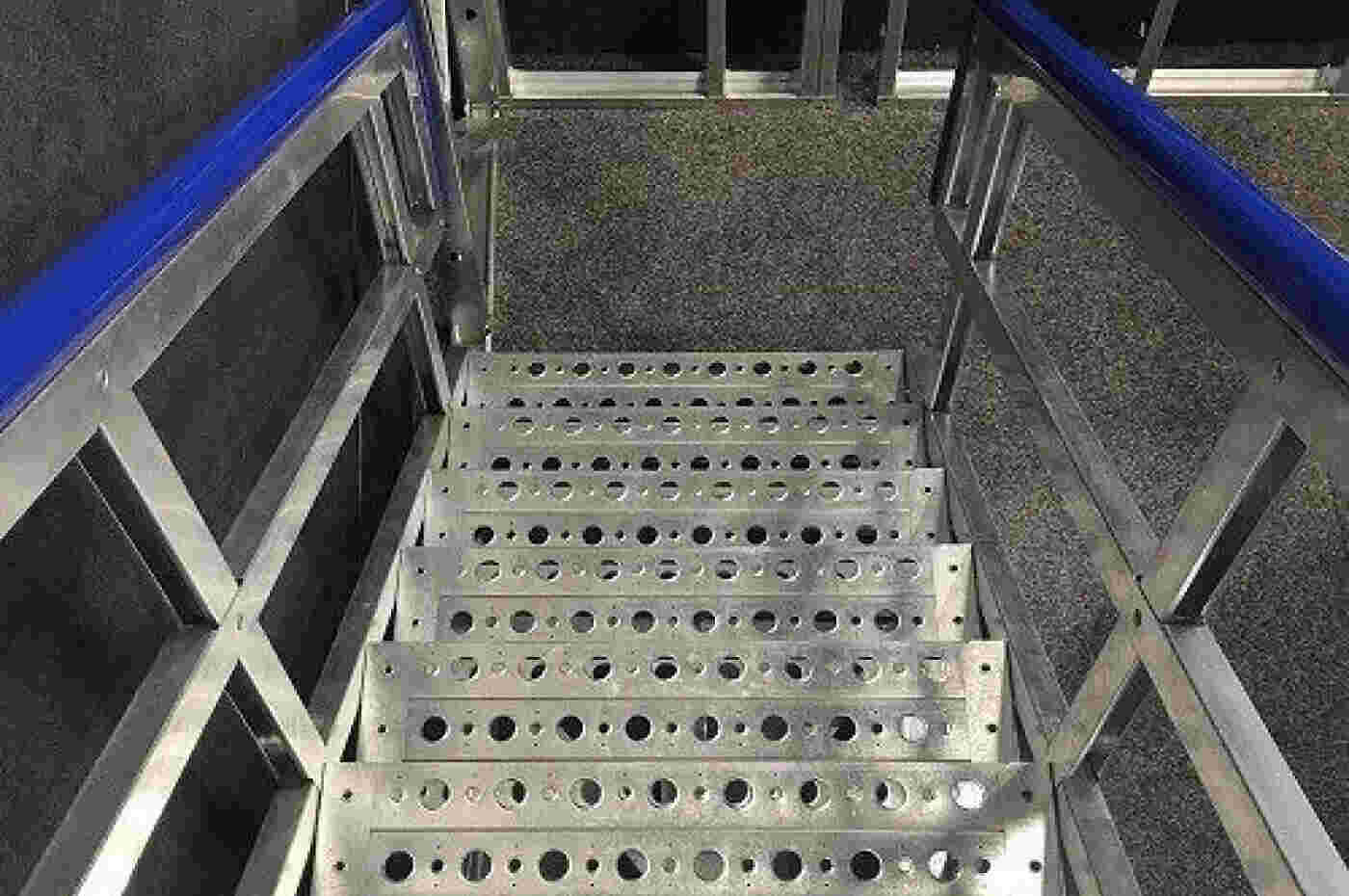

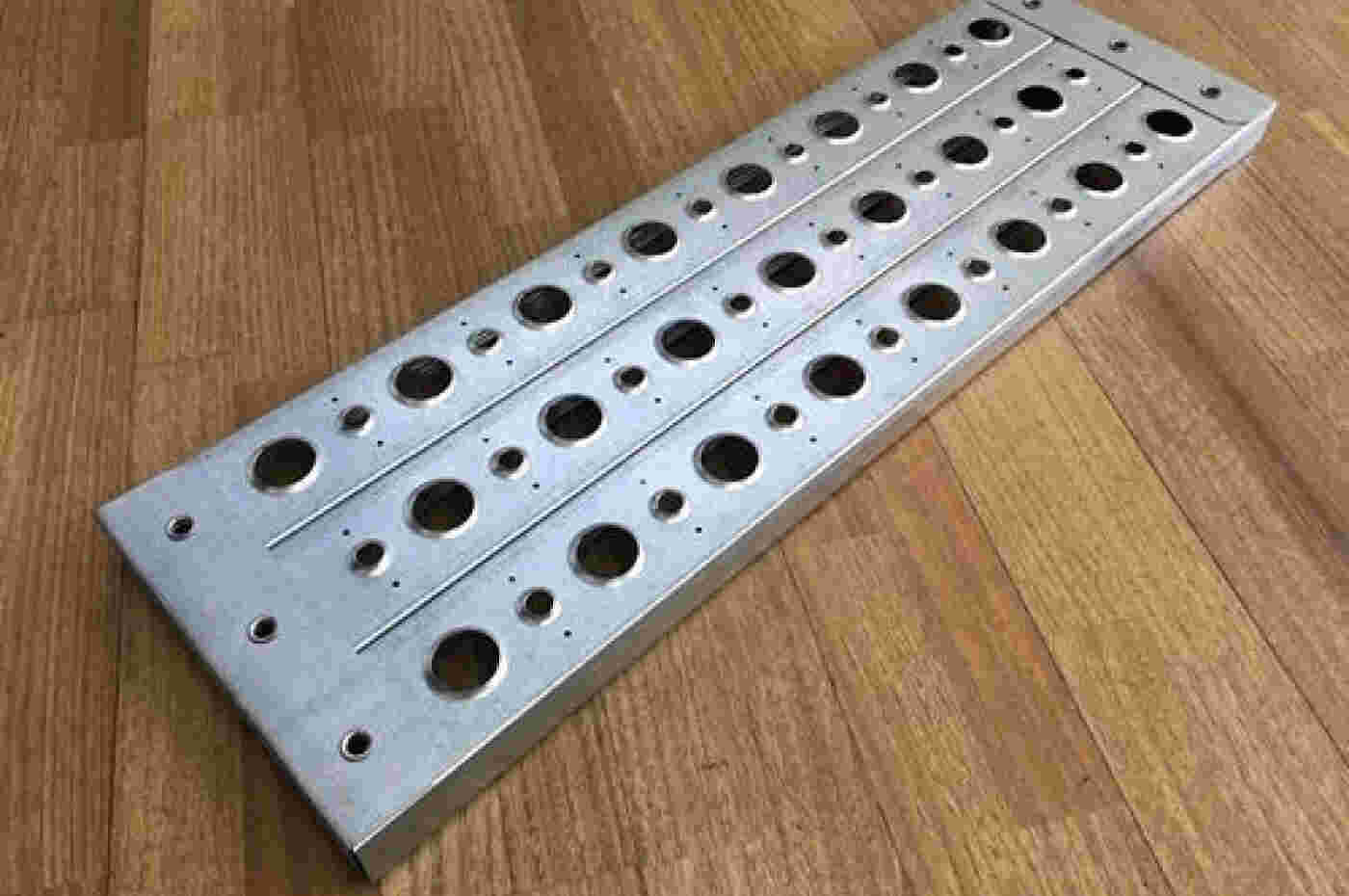

Standard tread widths of 700mm and 900mm are available, however, if you are trying to fit a staircase into an existing space, we can customise different widths depending on your requirements. Our treads are roll-formed from high-grade New Zealand recycled and galvanised steel with anti-slip swaged planks. The components are mechanically fixed together with a galvanised tube rivet. Our treads are available individually if your project already has stair stringers in place and new treads are required.

Our stair framing is pre-punched and cut-to-length in our machine using machine files generated by the design software specifically for your project. Stairways come with joist and floor fixing brackets. Stairways can also be made with or without handrails.

We have developed this product to service growing health and safety requirements to access plant and equipment safely for operators and maintenance personnel. It is available in flat pack form (if required) and provides a solution for a huge range of applications.

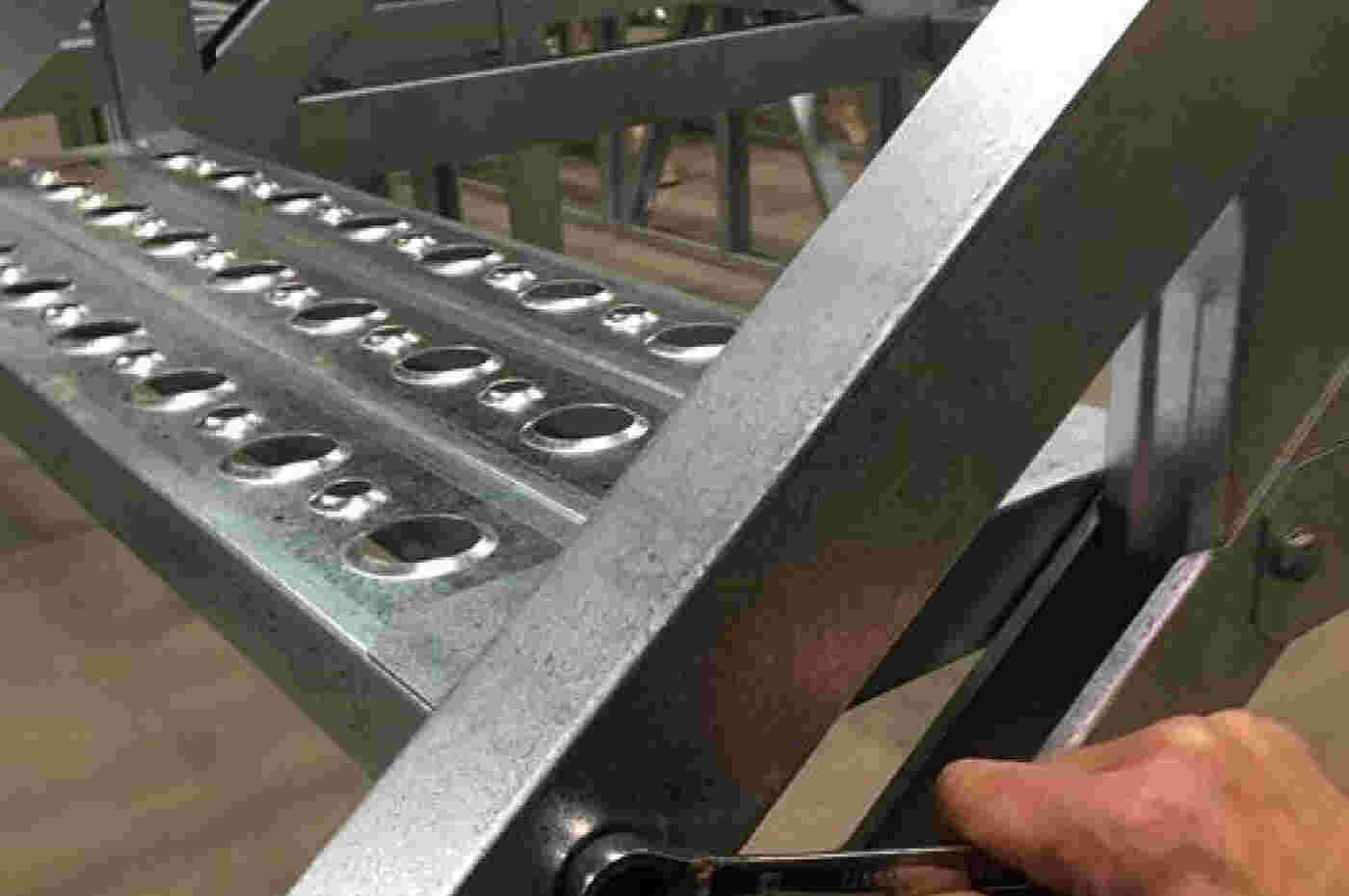

The staircase arrives on site either pre-assembled in our factory or flat pack in tread and stringer configurations. The staircases are fast and easy-to-assemble. All you need is a 13mm ring spanner to connect the structure together. We provide an easy-to-follow plan and the fasteners required to bolt the components together. The stairways are delivered in 3-days – Ex factory.
